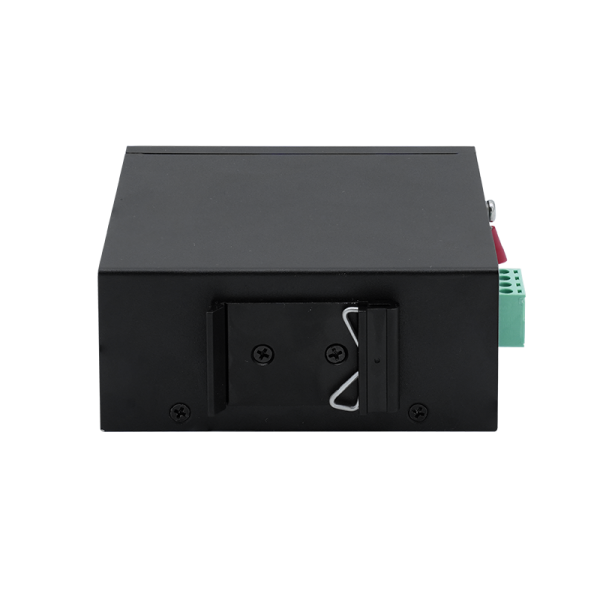

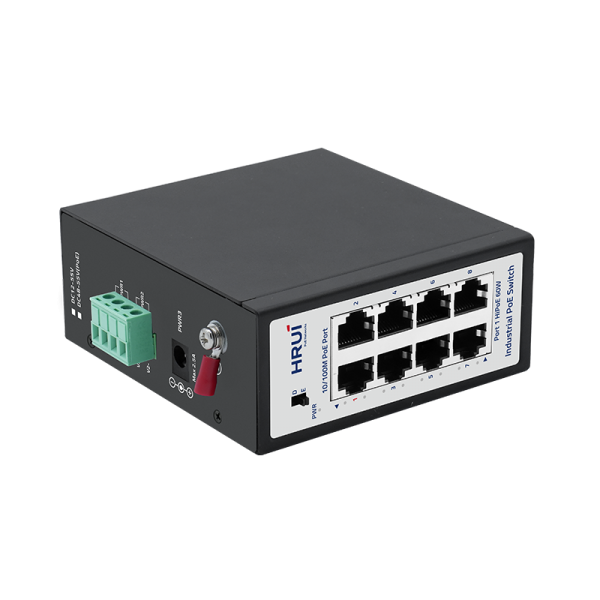

Switch industrial POE 8 porturi 10/100MBPS, HI-POE 60W, IP40, DIN, -40-75°C - HR710P-8T

Switch industrial POE 8 porturi 10/100MBPS, HI-POE 60W, IP40, DIN, -40-75°C

CARACTERISTICI

8 x porturi PoE 10/100Mbps
Standard PoE: IEEE802.3af/at
Port 1: HIPOE 60W
Porturi 2-8 PoE power output ≤30W
PoE output voltage: DC 48-55V, 5A
Buget PoE: 150W
Transmisie PoE extinsa pana la 250m
Metoda de transmisie: Store and Forward
Tabela adrese MAC: 2K
Bandwidth comutare: 1.6Gbps
Rata de forwarding: 1.19Mpps
Buffer pachete: 768Kbit
LED indicatoare pentru stare PoE si link
Mod D/E pentru transmisie extinsa a porturilor PoE
Protectie port la supratensiune: 6kV Common mode / 2kV Differential mode
Protectie ESD: 15kV Air / 8kV Contact
Protectie alimentare: 2kV Common mode / 1kV Differential mode
Temperatura de operare: -40-75°C
Temperatura de stocare: -40-85°C
Umiditate operare: 10%-90% fara condens
Umiditate stocare: 5%-95%
Alimentare: DC 12-55V / DC 48-55V (PoE)
Conectori alimentare: terminal industrial 4-PIN (reduntanti V1/V2) si DC 2.1
Alimentare tripla cu protectie la polaritate inversa
Carcasa IP40
Montaj pe sina DIN35, perete sau desktop
Certificari: CE, FCC, RoHS
Dimensiuni produs: 100(L) x 106(l) x 44(H) mm
Dimensiuni ambalaj: 150(L) x 145(l) x 60(H) mm
Greutate neta: 0.53 kg
Greutate bruta: 0.60 kg
INCLUS IN PACHET Switch: 1 buc; Manual: 1 buc; Certificat de inspectie: 1 buc
