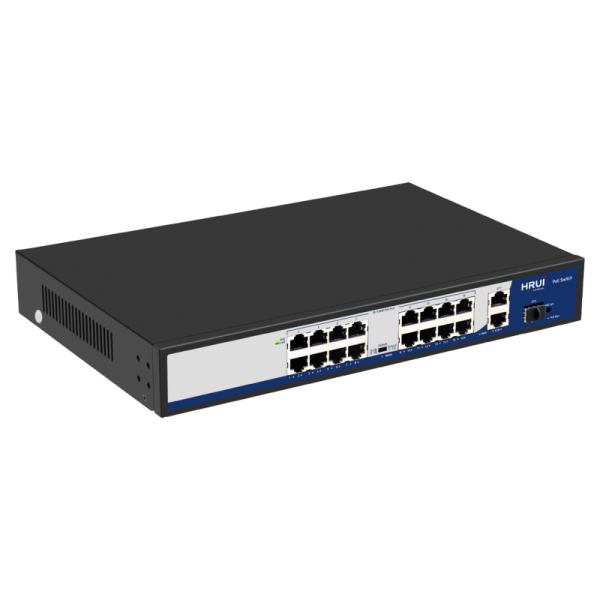

Switch POE 16 porturi 100MBPS + 2 porturi Gigabit RJ45 + 1 port Gigabit SFP, HIPOE 60W, 190W, -0-40°C - HR900-AF-1621GS-200

Switch POE 16 porturi 100MBPS + 2 porturi Gigabit RJ45 + 1 port Gigabit SFP, HIPOE 60W, 190W, -0-40°C

CARACTERISTICI

Interfete si performanta:16 x porturi PoE 10/100Mbps
2 x porturi Gigabit RJ45 uplink
1 x port Gigabit SFP uplink
Standard retea: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z
Switching bandwidth: 9.2Gbps
Packet forwarding rate: 6.84Mpps
Packet buffer: 768Kbit
MAC address table: 2K
Metoda transmisie: Store and Forward
Control flux: IEEE802.3x (full duplex), Back pressure (half duplex)
PoE:Standard PoE: IEEE802.3af (15.4W) / IEEE802.3at (30W)
Port 1: HiPoE 60W
Porturi 2-16: <30W
PoE output voltage: DC 44-57V
PoE power budget total: 190W
Prioritate PoE implicita: 1-16
Moduri operare (VLAN/Default/Extend):VLAN: porturile 1-16 izolate intre ele, comunica cu porturile 17-19, PoE Watchdog activ
Default: toate porturile comunica, transmisie pana la 100m, watchdog dezactivat
Extend: porturile 1-16 fortate la 10Mbps, transmisie pana la 250m, PoE Watchdog activ
Protectii:Surge protection: 4kV common mode / 2kV differential modeESD: 8kV air / 6kV contact (Class B)
Fara ventilator

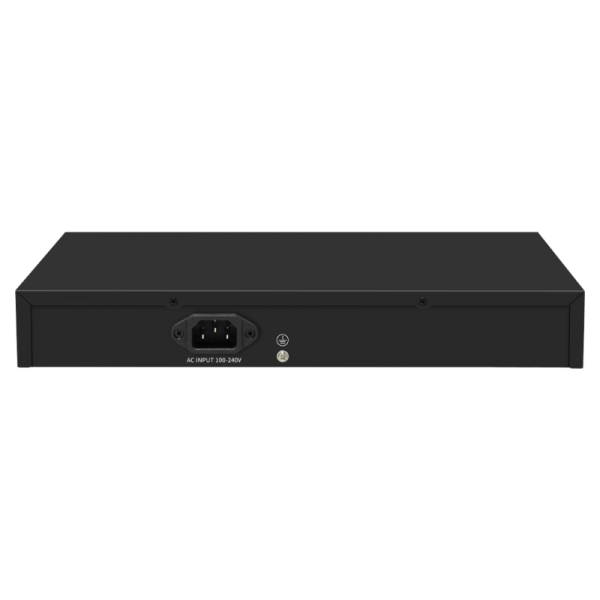

Alimentare:AC 100-240V 50/60HzDC 52V 3.84A
Consum placa baza: 5.3W
Temperatura operare: 0-40°C
Temperatura stocare: -40-70°C
Umiditate operare: 10%-90% fara condens
Umiditate stocare: 5%-95% fara condens
Dimensiuni produs: 320(L) x 207(l) x 45(H) mm
Dimensiuni ambalaj: 370(L) x 290(l) x 85(H) mm
Greutate neta: 1.61 kg
Greutate bruta: 2.14 kg
INCLUS IN PACHET Switch: 1 buc; Cablu alimentare: 1 buc; Manual: 1 buc; Certificat de inspectie: 1 buc; Kit montaj in rack: 1 pereche
