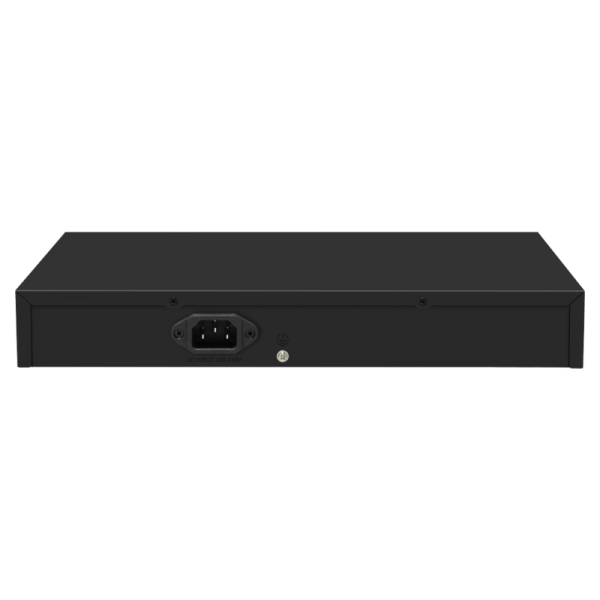

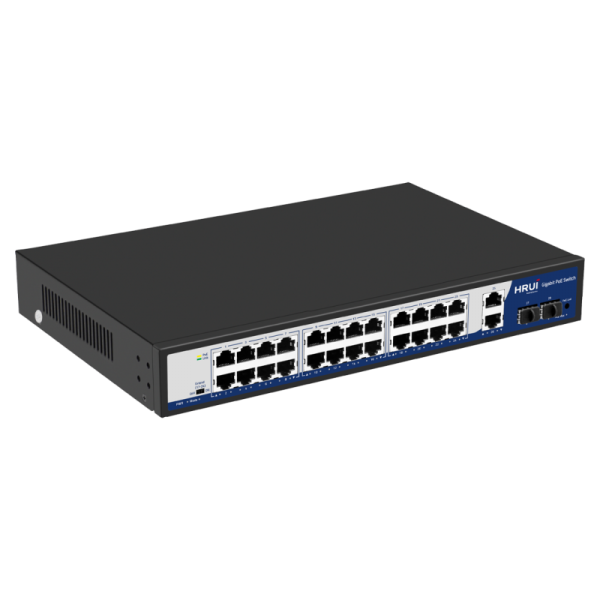

Switch POE 24 porturi Gigabit + 2 porturi Gigabit UpLink + 2 Porturi Gigabit SFP, IEEE802.3af/at, DEFAULT/EXTEND, -10-40°C - HR900-AFG-2422S-300D

Switch POE 24 porturi Gigabit + 2 porturi Gigabit UpLink + 2 Porturi Gigabit SFP, IEEE802.3af/at, DEFAULT/EXTEND, -10-40°C

CARACTERISTICI

24 x porturi PoE 10/100/1000Mbps
2 x porturi uplink RJ45 Gigabit
2 x porturi uplink SFP Gigabit
Standard retea: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Metoda transmisie: Store and Forward
PoE standard: IEEE802.3af (15.4W) si IEEE802.3at (30W)
PoE port output voltage: DC 44-57V
PoE porturi: porturile 1-24 PoE power output <30W; porturile 25-28 non-PoE
PoE Power Budget: 300W
Moduri operationale: Default — toate porturile comunica intre ele; Extend — porturile 17-24 pot extinde transmisia pana la 250m cu viteza 10Mbps si PoE Watchdog activat.
Suport Auto MDI/MDIX
LED indicatoare pentru stare PoE, link si transmisie
Protectie port la supratensiune: common mode 4kV / differential mode 2kV
Protectie ESD: Air 8kV / Contact 6kV
Temperatura de operare: -10-40°C
Temperatura de stocare: -40-70°C
Umiditate operare: 10%-90% fara condens
Umiditate stocare: 5%-95%
Alimentare: AC100-240V 50/60Hz / DC52V 5.76A
Dimensiuni produs: 320(L) x 207(l) x 44(H) mm
Dimensiuni ambalaj: 370(L) x 290(l) x 85(H) mm
Greutate neta: 1.97 kgGreutate bruta: 2.50 kg
INCLUS IN PACHET Switch: 1 buc; Cablu alimentare: 1 buc; Manual: 1 buc; Certificat de inspectie: 1 buc
