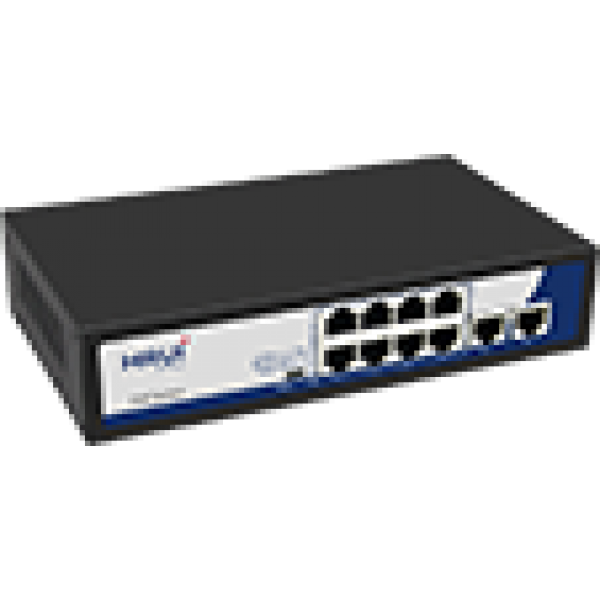

Switch POE 8 porturi 10/100MBPS + 2 porturi UpLink, IEEE802.3af/at, EXTEND, -10-40°C - HR900-AF-82N

Switch POE 8 porturi 10/100MBPS + 2 porturi UpLink, IEEE802.3af/at, EXTEND, -10-40°C

CARACTERISTICI

8 x porturi PoE 10/100Mbps
2 x porturi uplink RJ45 10/100Mbps
Standard retea: IEEE802.3, IEEE802.3u, IEEE802.3x
Metoda transmisie: Store and Forward
PoE standard: IEEE802.3af, IEEE802.3at
PoE port output voltage: DC 44-57V
PoE power budget: 115W
Porturi PoE: porturile 1-8 PoE power output ≤30W
Surge protection: common mode 4KV / differential mode 2KV (Class B)
Electrostatic ESD protectie: Air 8KV / Contact 6KV (Class B)
DIP switch pentru moduri operationale: Default / VLAN / Extend
Default: toate interfetele pot comunica intre ele
VLAN: izolarea porturilor 1-8 de 9-10, permite PoE watchdog
Extend: porturile PoE 1-8 pot extinde transmisia pana la 250m la 10Mbps cu PoE watchdog activ
Auto MDI/MDIX suportat
LED indicatoare pentru stare PoE si link
Temperatura de operare: -10-40°C
Temperatura de stocare: -40-70°C
Umiditate operare: 10%-90% fara condens
Umiditate stocare: 5%-95%

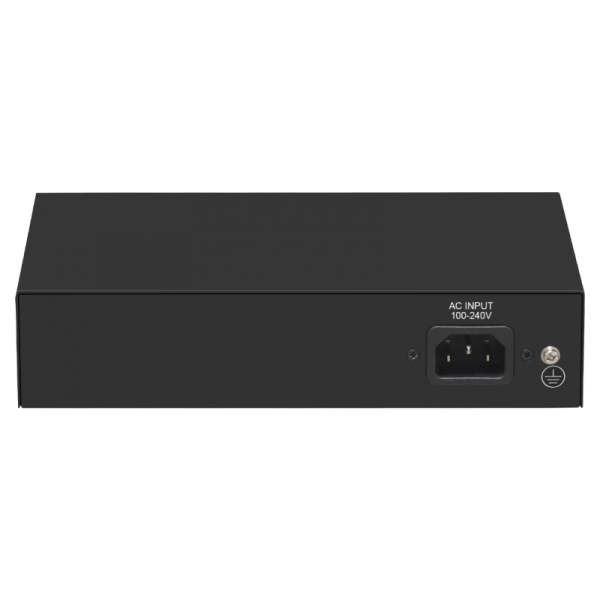

Alimentare: AC 100-240V 50/60Hz / DC 52V 2.3A
Dimensiuni produs: 200(L) x 118(l) x 44(H) mm
Dimensiuni ambalaj: 245(L) x 190(l) x 60(H) mm
Greutate neta: 0.62 kg
Greutate bruta: 0.93 kg
INCLUS IN PACHET Switch: 1 buc; Cablu alimentare: 1 buc; Manual: 1 buc; Certificat de inspectie: 1 buc
